Our Products

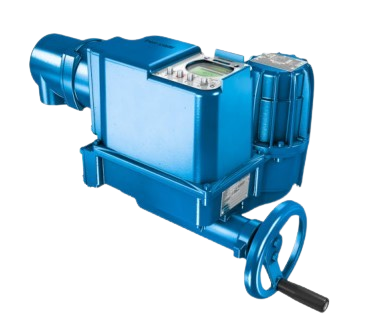

AUMA AiMC actuators
Kategori: actuators
AUMA AiMC actuators are high-end sophisticated actuators. The actuators are operated via user interface with LC-Display and pushbuttons. They include an integrated control unit and a variety of programmable actuator functions and operating modes via remote and local settings, watchdog, electronic nameplate, datalogger as well as local valve diagnostics for predictive maintenance.
BASICS:
AUMA AiMC 3-phase AC squirrel cage motor, insulation class F, 3 thermoswitches
AM (without display)
Kategori: actuators
AM actuator controls with their straightforward design are the perfect choice when using parallel signal transmission while a relatively low number of feedback signals is required. Few parameters need to be defined via sliding switches during commissioning, e.g. type of seating in end positions. Control is made via operation commands OPEN, STOP, CLOSE. Reaching an end position and collective fault signals are reported back to the DCS as feedback signals. These signals are visually displayed at the local controls via the indication lights. As an option, the valve position can be transmitted as 0/4 – 20 mA signal to the DCS.
Simple actuator controls with basic functions
AC actuator controls
Kategori: actuators
AC actuator controls are your perfect solution if the application requires self-adapting control functions, data logging, a configurable interface or if valve and actuator are to be integrated into a Plant Asset Management System due to advanced diagnostic functions.
AC actuator controls are equipped with a parallel interface for free configuration and/or interfaces to fieldbus systems as used within process automation.
The diagnostic functions comprise a time-stamped event report, torque characteristics logging, continuous recording of temperatures and vibration within the actuator and, furthermore, counting the number of starts and motor running times.

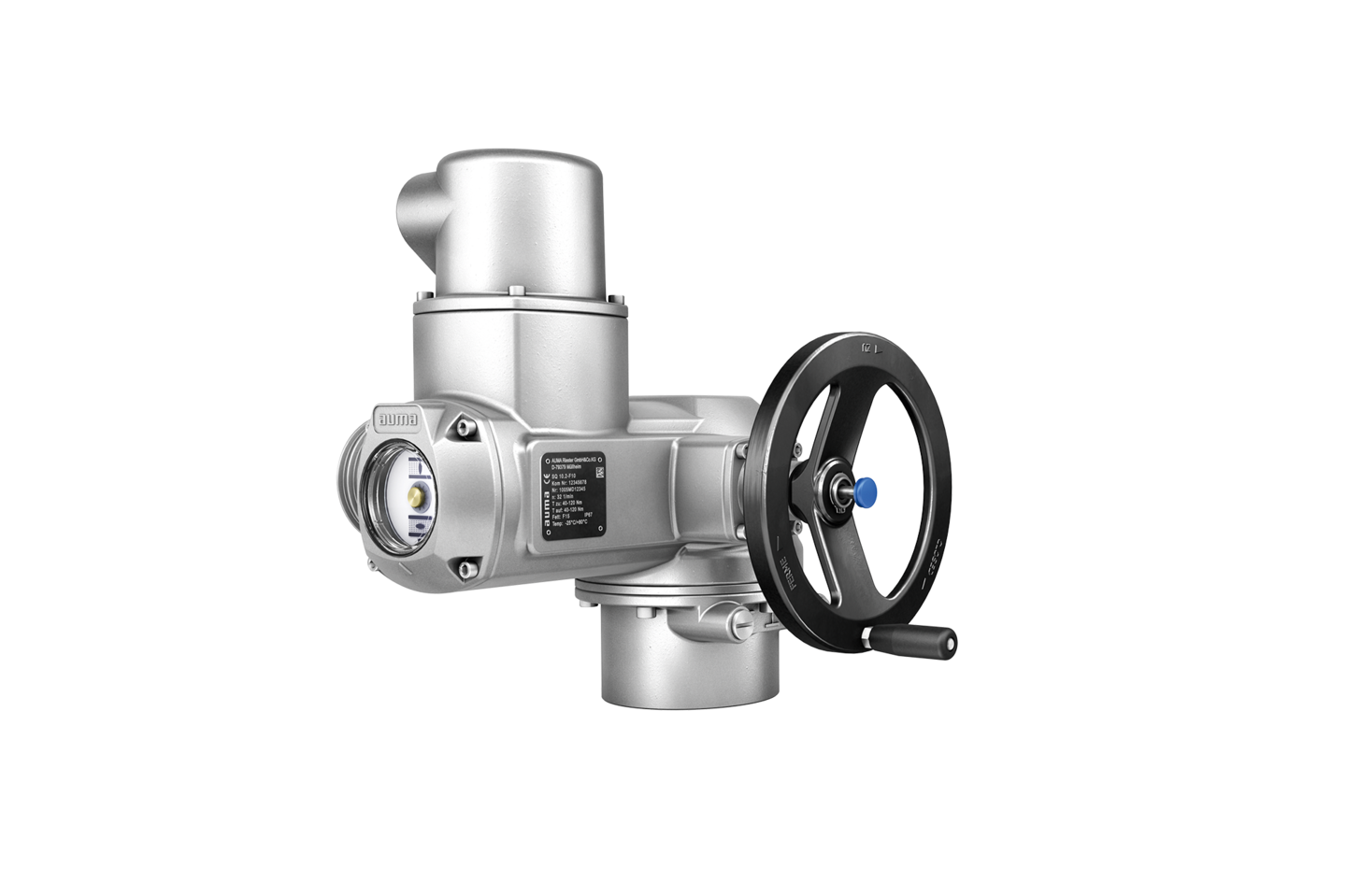

Part-turn actuators, Modular allrounders SQ
Kategori: actuators
Part-turn actuators of the SQ .2 type range are designed for open-close duty and positioning duty (classes A and B) / (short-time duty S2 - 15 min).
Actuators of the SQ .2 type range can be combined with various controls: From simple OPEN-CLOSE controls to the micro-controlled version with logging of operating data or fieldbus interface.
Torque range
50 Nm to 2500 Nm
For open-close duty

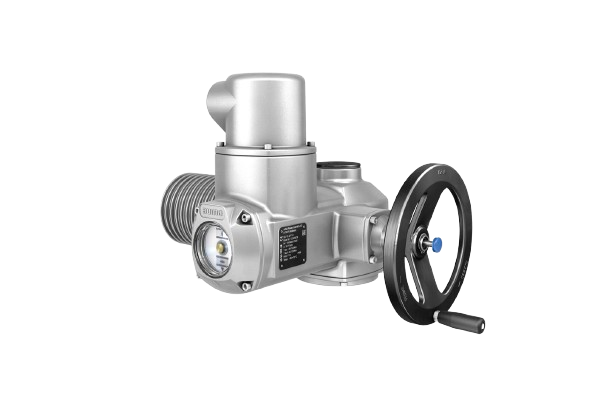

Multi-turn actuators, Modular allrounders SA
Kategori: actuators
SA multi-turn actuators are rated for open-close duty and positioning duty (classes A and B) / (short-time duty S2 - 15 min). Special sizing for longer running times is available for the S2 - 30 min duty.
The actuators can be combined with different actuator controls: From simple OPEN-CLOSE actuator controls to the micro-controlled version with logging of operating data or fieldbus interface.
Torque range
10 Nm to 32 000 Nm
For open-close duty
